Ideal usage: Automotive Workshops and the Mining Industry

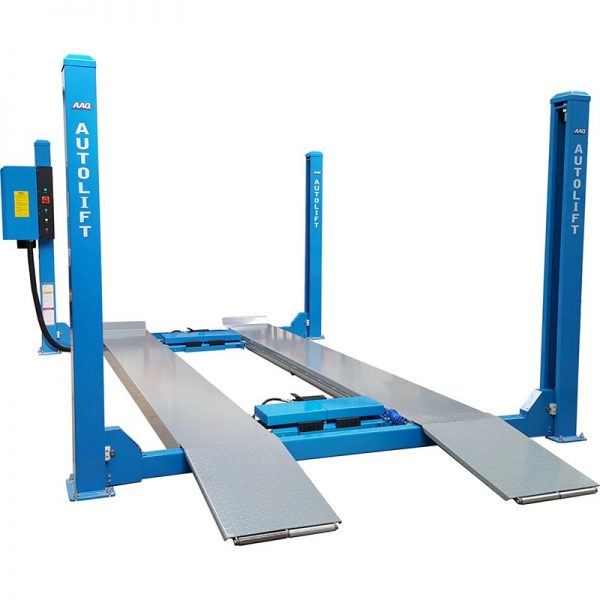

Ideally suited to Automotive Dealerships and the Mining Industry, this heavy duty vehicle hoist comes complete with two hydraulically operated 2000kg capacity jacking beams for complete wheels free application, this hoist is designed for busy workshops. The air operated jacking beams can be operated by air over hydraulic pump. This professional vehicle hoist features a Korean made hydraulics and electrical system whilst the extra wide, extra long platforms accommodate a wider range of vehicles. This Australian Standard WorkSafe design registered hoist has a SWL of 4000kg and multi position safety locks in each column. The hoist up and down operation can be easily operated from the main power column.
Air requirement: 60-90 PSI
• WorkSafe Design Registered
• Heavy duty construction
• Extra wide between columns
• Extra long rollers on run up ramps
• Top column cover caps
• Fully enclosed power unit
• Air operated jacking beams
• Fully enclosed lifting cables and air safety locks
• Multi position safety locks in each column
• Single hydraulic cylinder mounted underneath runway
• Complete with 2 x2 tonne hydraulic jacking beams
• Overall height: 2274mm
• Width overall: 3643 mm
• Length overall: 5775 mm
• Lifting height 158-1800 mm
• Lifting capacity: 4000kg
• Power: 415V, 3Ph or 240V, 1Ph
• Net weight: 1224kg
• Gross weight: 1240 kg
• Packing Size: 4700*710*1100 mm
