Ideal usage: Automotive Workshops and the Mining Industry

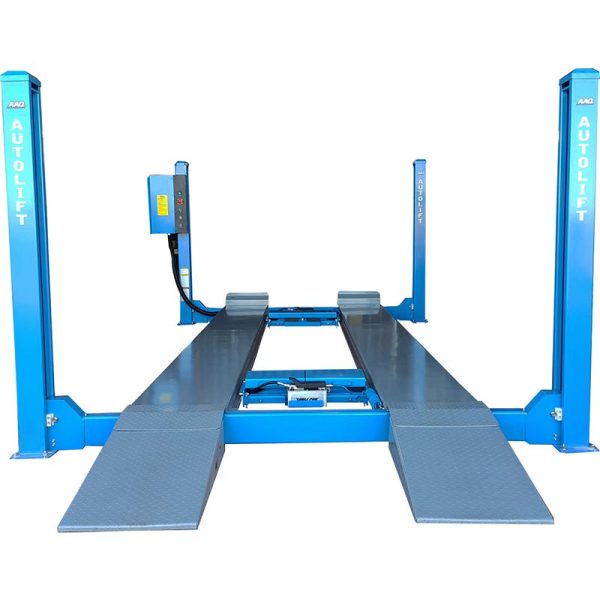

Ideally suited to Automotive Dealerships and the Mining Industry, this extra heavy duty 4 post hoist has a impressive 6000kg lifting capacity. Also included are two hydraulic 3000kg capacity jacking beams for complete wheels free application. The air operated jacking beams can be operated by air over hydraulic pump. This professional vehicle hoist features a Korean made hydraulics and electrical system whilst the extra wide, extra long platforms accommodate a wider range of vehicles. This Australian Standard WorkSafe design registered hoist has a SWL of 6000kg and multi position safety locks in each column. The hoist up and down operation can be easily operated from the main power column.
Air requirement: 60-90 PSI
• WorkSafe Design Registered
• Extra Heavy Duty Construction
• Extra wide between columns

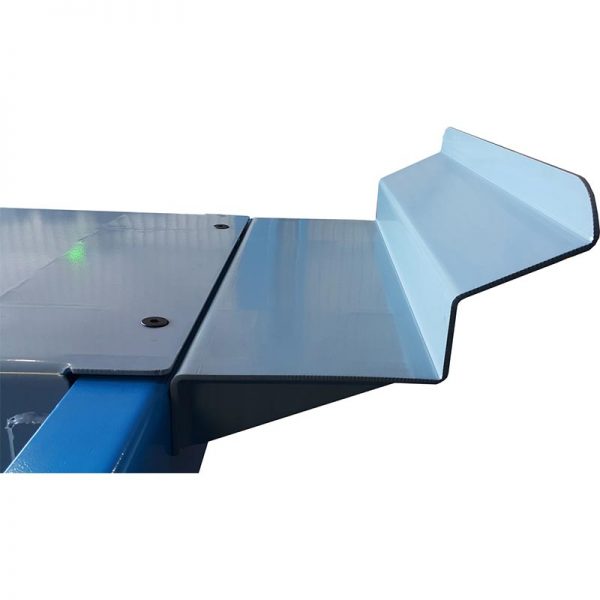

• Extra long rollers on run up ramps
• Top column cover caps
• Fully enclosed power unit

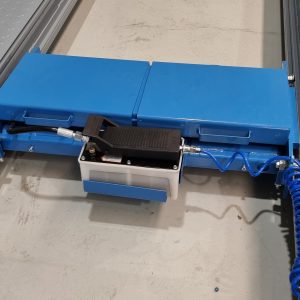

• Air operated jacking beams

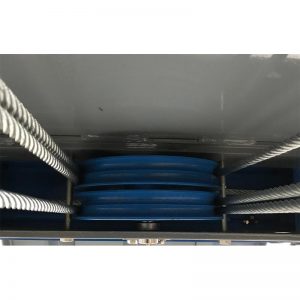

• Fully enclosed lifting cables and air safety locks
• Multi position safety locks in each column
• Single hydraulic cylinder mounted underneath runway

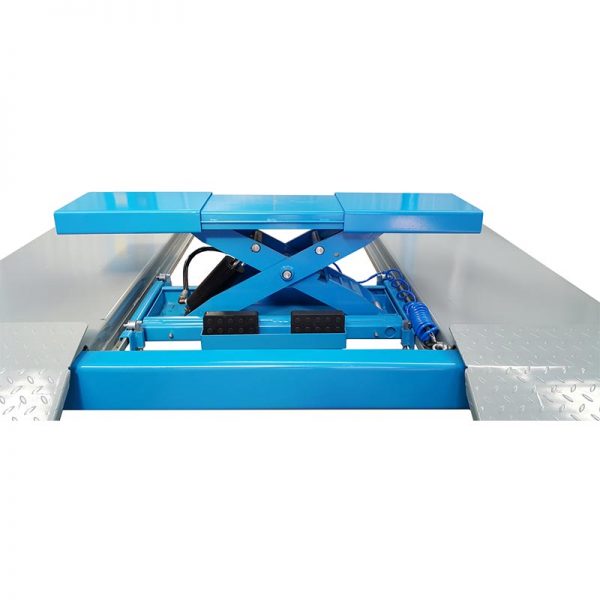

• Complete with 2 x 3 tonne hydraulic jacking beams
• Height overall: 2170 mm
• Width overall: 3617 mm
• Length overall: 7150 mm
• Lifting height: 230 -1705 mm
• Lifting capacity: 6000 kg
• Power: 415V 3 Phase
• Net weight: 1300 kg
• Gross weight: 1460 kg
• Packing Size: 5770*720*830 mm Carton & Jacks: 1000 x 630 x 1300 mm
