Starke - Pit Parking Lift

ideal usage: Mining and Automotive Workshops

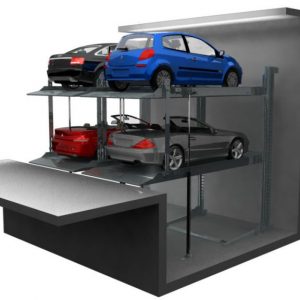

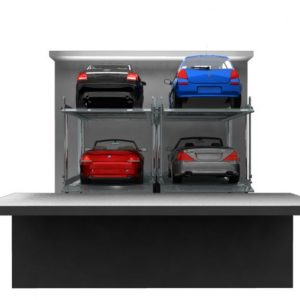

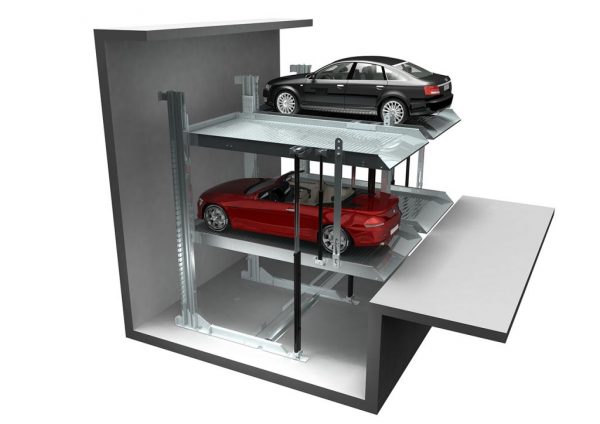

The Starke pit parking lift is a parking lift system designed around a pit for two level parking. This system
enables independent access to the individual parked vehicles. The configuration allows for a bank
of parking lifters to be assembled with adjacent lifts. Lifting capacity varies, depending on the model.

• TUV compliant, which is the most authoritative certification in the world
• Low usage cost
• New hydraulic system which owns Ashkenazi structure
• Galvanized pallet
• Zero accident security system
• Dynamic locking device
• Multiple chain protection devices
• Unique guiding system
• More stable electric motors
• Electrical auto control
• Further strengthened main structure of the equipment
• Gentle metallic touch, excellent surface finishing
• Rich colour
• Strong adhesion
• Superior chains provided by Korean chain manufacturer
• Galvanized screw bolts based on the European standard
• Hydraulic centralized control
• Laser cutting + robotic welding

Starke 2127

General

• Vehicles parked per unit: 2
• Rated capacity: 2700kg
• Available car length: 5000mm
• Available car width: 2050mm
• Available car height: 1700mm
• Waving plate: Galvanized steel sheet
• Drive Mode: Hydraulic cylinder + chains
• Operation: Key switch
• Lifting speed: 30s
• Descending speed: 25s
• Power supply: 200-450V, 3P, 50/60Hz
• Finishing: Powder coating with Akzo Nobel powder

Hydraulic

• Hydraulic pump: Centralized power unit
• Pump motor power: 5.5Kw
• Pump flow: 18ML/r
• Pump working pressure: 14-16 MPa
• Hydraulic cylinder: Double
• Cylinder seal: Italian Aston Seals
• Hydraulic Oil: L-HV 46#
• Oil hose: Galvanized seamless tube
• Lifting Chain: 16B
• Wire rope: Φ10

Starke 2121

General

• Vehicles parked per unit: 2
• Rated capacity: 2100kg
• Available car length: 5000mm
• Available car width: 2050mm
• Available car height: 1550mm
• Waving plate: Galvanized steel sheet
• Drive Mode: Hydraulic cylinder + chains
• Operation: Key switch
• Lifting speed: 30s
• Descending speed: 25s
• Power supply: 200-450V, 3P, 50/60Hz
• Finishing: Powder coating with Akzo Nobel powder

Hydraulic

• Hydraulic pump: Centralized power unit
• Pump motor power: 5.5Kw
• Pump flow: 18ML/r
• Pump working pressure: 14-16 MPa
• Hydraulic cylinder: Double
• Cylinder seal: Italian Aston Seals
• Hydraulic Oil: L-HV 46#
• Oil hose: Galvanized seamless tube
• Lifting Chain: 16B
• Wire rope: Φ10

Starke 2227

General

• Vehicles parked per unit: 4
• Rated capacity: 2700kg
• Available car length: 5000mm
• Available car width: 2050mm
• Available car height: 1700mm
• Waving plate: Galvanized steel sheet
• Drive Mode: Hydraulic cylinder + chains
• Operation: Key switch
• Lifting speed: 30s
• Descending speed: 25s
• Power supply: 200-450V, 3P, 50/60Hz
• Finishing: Powder coating with Akzo Nobel powder

Hydraulic

• Hydraulic pump: Centralized power unit
• Pump motor power: 5.5Kw
• Pump flow: 18ML/r
• Pump working pressure: 14-16 MPa
• Hydraulic cylinder: Double
• Cylinder seal: Italian Aston Seals
• Hydraulic Oil: L-HV 46#
• Oil hose: Galvanized seamless tube
• Lifting Chain: 20B
• Wire rope: Φ10

Starke 2221

General

• Vehicles parked per unit: 4
• Rated capacity: 2100kg
• Available car length: 5000mm
• Available car width: 2050mm
• Available car height: 1550mm
• Waving plate: Galvanized steel sheet
• Drive Mode: Hydraulic cylinder + chains
• Operation: Key switch
• Lifting speed: 30s
• Descending speed: 25s
• Power supply: 200-450V, 3P, 50/60Hz
• Finishing: Powder coating with Akzo Nobel powder

Hydraulic

• Hydraulic pump: Centralized power unit
• Pump motor power: 5.5Kw
• Pump flow: 18ML/r
• Pump working pressure: 14-16 MPa
• Hydraulic cylinder: Double
• Cylinder seal: Italian Aston Seals
• Hydraulic Oil: L-HV 46#
• Oil hose: Galvanized seamless tube
• Lifting Chain: 20B
• Wire rope: Φ10

Electrical (Apply for all models)

• PLC: Omron
• Power switch: Meanwell
• Load switch: Schneider
• Breaker: Schneider
• RCCB: Schneider
• Guide rail socket: Schneider
• AC contactor: Schneider
• Thermal relay: Schneider
• Relay: Schneider
• Relay base: Schneider
• Indicator: Schneider
• Key switch: Schneider
• Emergency stop button: Schneider
• Buzzer: Schneider
• Limit Switch: Schneider
• Normally open contact: Schneider

Safety Devices

• Mechanical anti-falling safety lock in the front of platform
• Chains loosen detection and break protection.
• Full directions guiding system.
• 24v electric lock release has no harm for operator
• Electric protection for power over load or under voltage
• Auto locking system in case electrical failure
• Emergency stop button
• Pressure relief valve and pressure compensate flow control valve
• Limited switch at the top of the post. When the platform goes to the appointed height, it will automatic stopped to avoid the wrong operation
• Overload protection device for hydraulic power pack
• Synchronization shaft
